Description
Overview
The Rebar Scanner is a portable intelligent non-destructive testing instrument. It is used in the structural inspection of reinforced concrete. Ability to carry out accurate testing on measuring depth of rebar cover and diameter of rebar on the surface of reinforced concrete and ability to analyse distribution of the rebar. The ergonomics design, make it easy to use for long hours. The host is equipped with touchable full colour LCD Screen , 854 x 480 with clear interface.
Model NL 4041 X / 004. Key figures: Applicable Range Ø6mm ~ Ø50mm; Protective Layer Thickness Range First Stage : 2 – 100 mm,; Display Accuracy on Dia. Estimate 0.1 mm; Power Built in Charge ble Lithium Battery.
Applications & Test Methods
Integrated Rebar Scanner is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to BS 1881-204. Read the method guides: Rebar Bend & Rebend Test (ISO 15630-1 / BS 4449), Rebar Tensile & Bend Test (ISO 15630 / ASTM A615). See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.

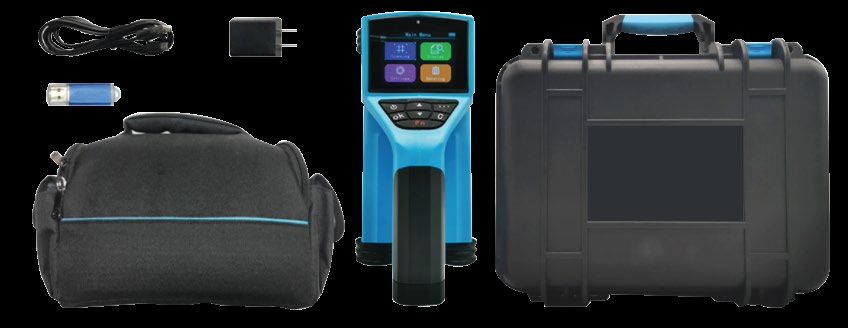

Supplied With
- Integrated Rebar Scanner
- Communication Data Line
- Charger
- USB Drive
- Instrument Package Bag
- Vibration Proof Case
Technical Specifications
| Model Number | NL 4041 X / 004 |
|---|---|
| Applicable Range | Ø6mm ~ Ø50mm |
| Protective Layer Thickness Range | First Stage : 2 – 100 mm, |
| Display Accuracy on Dia. Estimate | 0.1 mm |
| Power | Built in Charge ble Lithium Battery |
| Dimension and Weight | 235mm (L) x 120mm(W) x 130mm (H) / 1kg |
Compliance Standards
- BS 1881-204
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
