Description
Overview

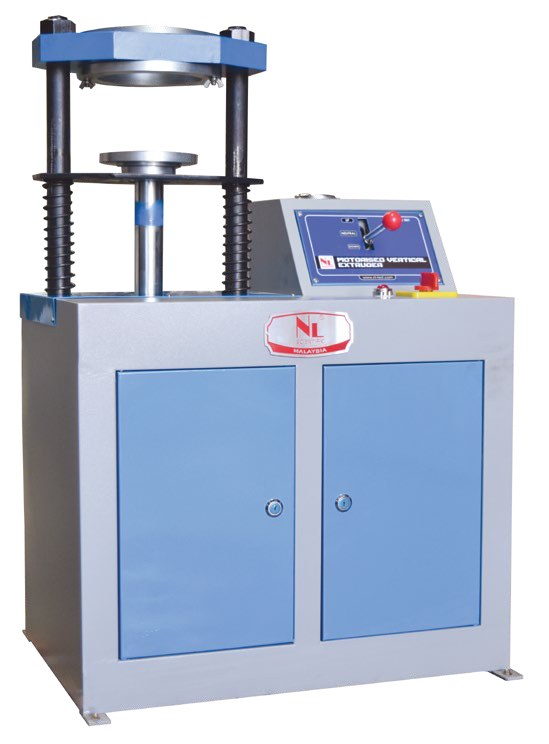

Used for a smooth and rapid extrusion of soil and asphalt specimen with minimum disturbance. The unit can extrude for CBR and Marshall sample. The extruded sample is held in place by a receiving table adjustable in height and easily lowered along side of the machine. The Motorized Vertical Extruder come complete with adaptor to extrude sample having diameter 100 mm and 150 mm.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 2033 X / 001 |
|---|---|
| Dimension (mm) | 430 (L) x 640 (W) x 960 (H) |
| Extruder Speed | 70 mm / minute |
| Reverse Speed | 140 mm / minute |
| Power | 380 415 V, 3 ph, 50/60 Hz,150 Watt,1Hp |
| Approx. Weight | 130 kg |
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
