Description
Overview

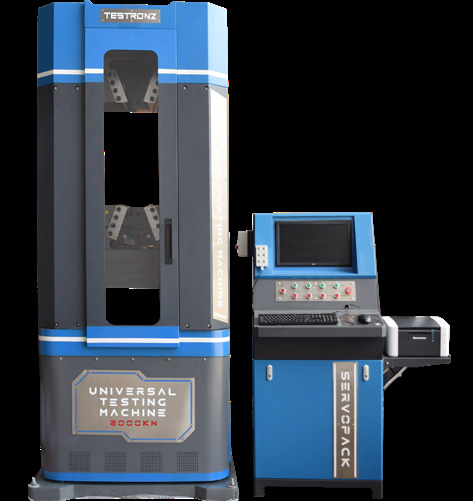

TT 6000 Series UTM use the micro-computer automatic data collection and processing, real time display of the test data and curves. It has the functions such as unlimited storage of test result in the computer, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automati- cally seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc. TT 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient opera- tion and etc.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | TT 6KSX / 016 |
|---|---|
| Girder Lifting Speed | 350 mm / min |
| Max. Test Capacity | 2000 kN |
| Relative Error of Indicated Value ±1% | Effective Distance Between 2 Column 590 mm |
| Piston Stroke | 250 mm |
| Test Speed | Max. 100 mm/min |
| Round Specimen Size | Ø20- Ø70 mm |
| Flat Specimen Size | Max. 50 mm Thick |
| Displacement Resolution | 0.001 mm Dimension (Frame) (mm) 1200 x 900 x 2940 (LxWxH) |
| Power | 380~415V, 3ph,4kW,8.1A, 50/60 Hz |
| Weight (Control Console) | 300 kg |
| Weight ( Frame) | 6000 kg |
Compliance Standards
- BS EN 10002-1
- ISO 7500-1
- ASTM A370
