Description
Overview

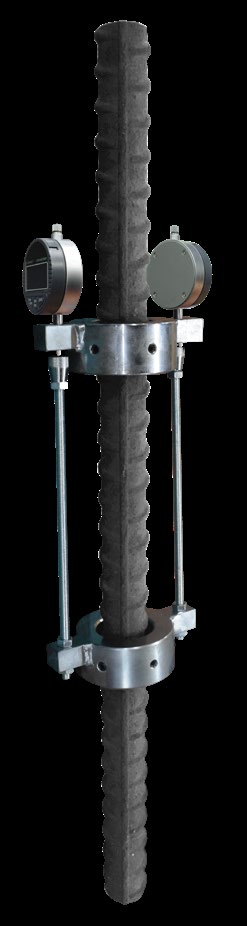

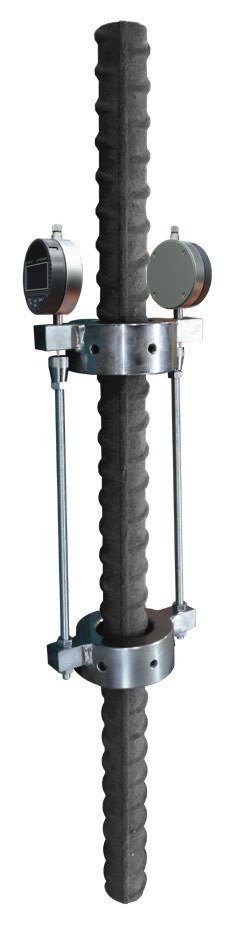

Mechanical Extensometer is an attachment to Universal Tensile / Testing Machine. It measures the elongation of a test piece on load for the set gauge length. The least count of measurement is 0.001 mm and maximum elongation measured is up to 25.4 mm. This elongation measurement helps in finding out of the proof stress at the required elongation percentage.
Model NLME101S. Key figures: Measuring Range 0 to 25.4 mm; Resolution 0.001 mm; Diameter of Specimen Up to 50 mm; Dimension (mm) 155 (L) x 100 (W) x 350 (H).
Applications & Test Methods
Mechanical Extensometer (Twin Gauge) is used for mechanical testing of steel, rebar, wire and metals in factory QC and civil laboratories. Read the method guides: Flakiness & Elongation Index Test (BS 812-105), Universal Testing Machine (UTM). Browse all Steel testing equipment.
Technical Specifications
| Model Number | NLME101S |
|---|---|
| Measuring Range | 0 to 25.4 mm |
| Resolution | 0.001 mm |
| Diameter of Specimen | Up to 50 mm |
| Dimension (mm) | 155 (L) x 100 (W) x 350 (H) |
| Approx. Weight | 4 kg |
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
