Description
Overview

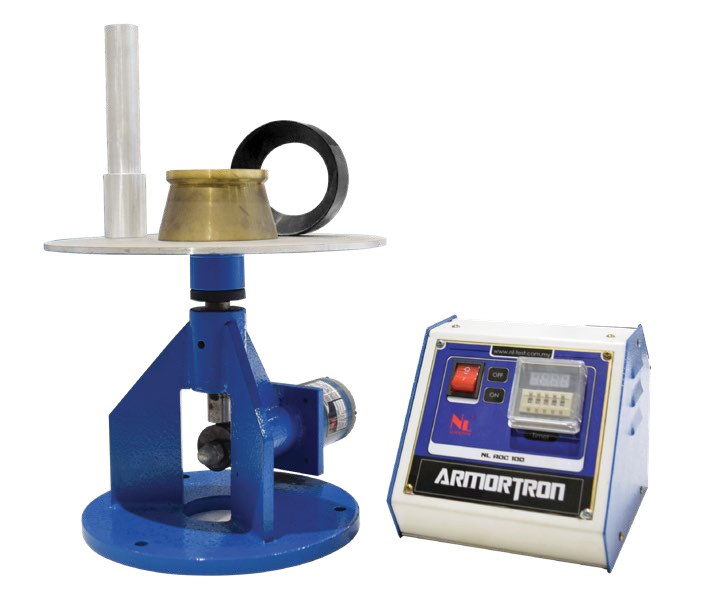

The EN flow table apparatus is used to determine the consistency of fresh mortar and building lime to EN 1015-3 and EN 459-2. A truncated-cone mould is filled with mortar on the table top, which is then raised and dropped a set number of times so the spread diameter can be measured.
Model NL 3016 X / 003. Key figures: Dimension (mm) 380 (L) x 300 (W) x 245 (H); Power – 220 – 240 V, 1 ph, 50 / 60 Hz.
Applications & Test Methods
Flow Table Apparatus (EN) is used for cement, lime and mortar quality control in cement plants and construction laboratories. It supports test procedures to EN 459-2, EN 1015-3. Read the method guide: Mortar Flow Table Test (ASTM C1437 / EN 1015-3). Browse all Cement & Mortar testing equipment.
Optional Accessories
- Vernier Caliper
Technical Specifications
| Model Number | NL 3016 X / 003 |
|---|---|
| Dimension (mm) | 380 (L) x 300 (W) x 245 (H) |
| Power | – 220 – 240 V, 1 ph, 50 / 60 Hz |
| specimen from the mould. | Set Consists Of : |
Compliance Standards
- EN 459-2
- EN 1015-3
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
