Standard: EN 12390-3,EN 1338,EN 196-1/AASHTO T22/ASTM C39
This semi-automatic compression machine special designed for specimen such as low strength concrete,brick,mortar and etc. User can request any maximum compression force (Between 300 to 1000 kN).
– Front and side safety enclosed.
– Loading speed control knob.
– Grade 1.0 compression accuracy.
– 5 elements injection hydraulic pump.
– High tensile pre-stress 4 column frame.
– Rapid approach system for time saving.
-Force value in kN & Mpa

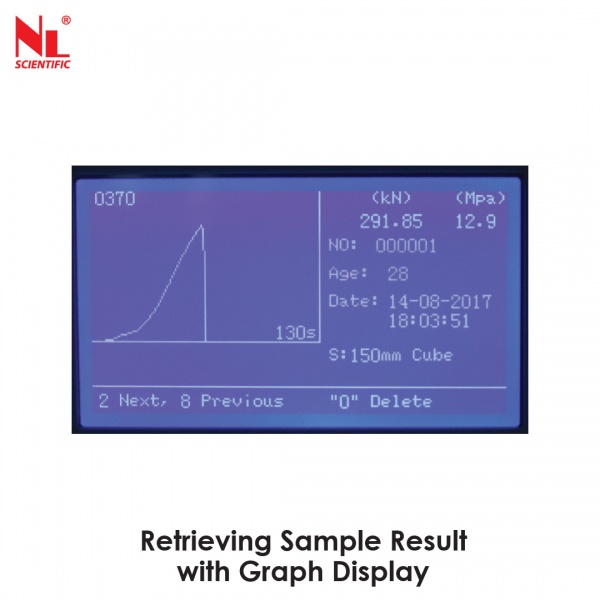

-Max. force hold facility with real time force vs time graph display
-Multiple testing program can be selected
-Auto result saving up to 450 specimen

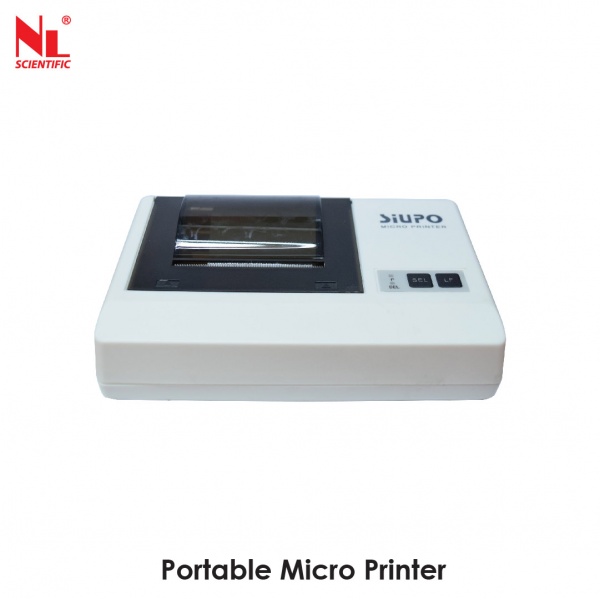

-RS 232 port for instand result printing (Mini printer c/w cable NEED order separately)

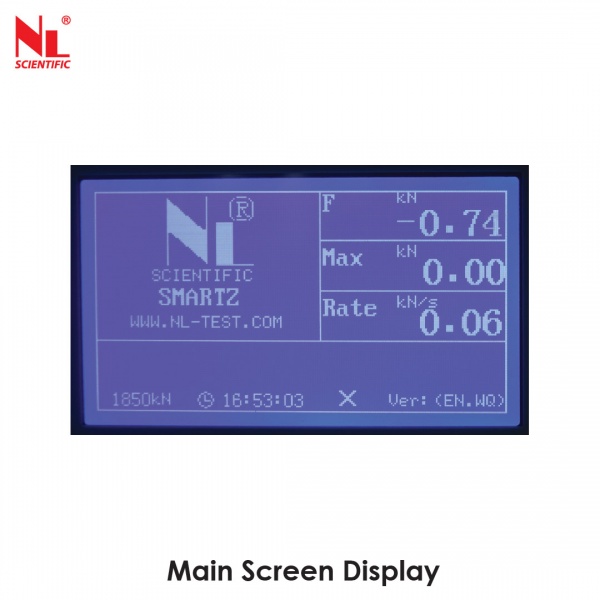

-115 x 65 mm high resolution LED screen
| Model Number | NL 3029 X / 003 |
|---|---|
| Capacity & Sensitivity | 300 till 1000kN (Upon request by user) x 0.1 kN |
| Max Vertical Clearance | 228 mm |
| Max. Horizontal Clearance | 240 mm |
| Compression Platen Size | Top : Ø220 mm, Bottom : 220 mm x 250 mm |
| Piston Ram Diameter & Travel | 200 mm x 80 mm |
| Approx. Dimension (mm) | 355(L) x 885 (W) x 1210 (H) |
| Approx. Weight | 600 kg |
| Power | AC 220 V , 1ph, 0.75kW,4.9 A, 50/60 Hz |
