Description
Overview

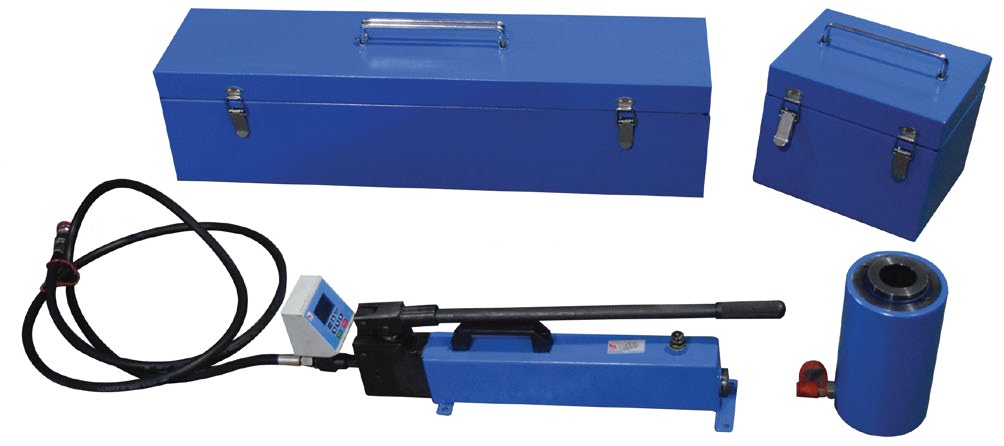

The Pull Out Test Apparatus is used for determining the bond strength between anchored reinforcing steel bar (rebar) and concrete and for checking anchorage performance in-situ. The Pull Out Test Apparatus are available in variety of capacities and size of wedges & adapter for selection. Specimen wedges are sold separately and user have to select the desired size (refer Optional.
Model NL 4016 X / 005. Key figures: NL 4016 X / PCA Power Charger Adapter 1 Unit.
Applications & Test Methods
Digital Pull-out Tester is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to ASTM C 900, BS 1881-207. Read the method guides: Rebar Bend & Rebend Test (ISO 15630-1 / BS 4449), Rebar Tensile & Bend Test (ISO 15630 / ASTM A615). See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- 100 kN (10 Tons) Single Acting Hydraulic Cylinder
- Power Charger Adapter
- 200 kN (20 Tons) Single Acting Hydraulic Cylinder
- 300 kN (30 Tons) Single Acting Hydraulic Cylinder
- 500 kN (50 Tons) Double Acting Hydraulic Cylinder
- 1000 kN (100 Tons) Double Acting Hydraulic Cylinder
- Power Charger Adaptor
Optional Accessories
- Specimen Wedge 6 mm Dia
- Specimen Wedge 8 mm Dia
- Specimen Wedge 10 mm Dia
- Specimen Wedge 12 mm Dia
- Specimen Wedge 14 mm Dia
- Specimen Wedge 16 mm Dia
- Specimen Wedge 18 mm Dia
- Specimen Wedge 20 mm Dia
- M18 Puller Rod c/w Washer
- Puller Adaptor Set (M6 – 20, 8 pcs)
- M18 Puller Rod Adaptor M6
- M18 Puller Rod Adaptor M8
Technical Specifications
| Model Number | NL 4016 X / 005 |
|---|---|
| NL 4016 X / PCA Power Charger Adapter | 1 Unit |
Compliance Standards
- ASTM C 900
- BS 1881-207
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
