Description
Overview

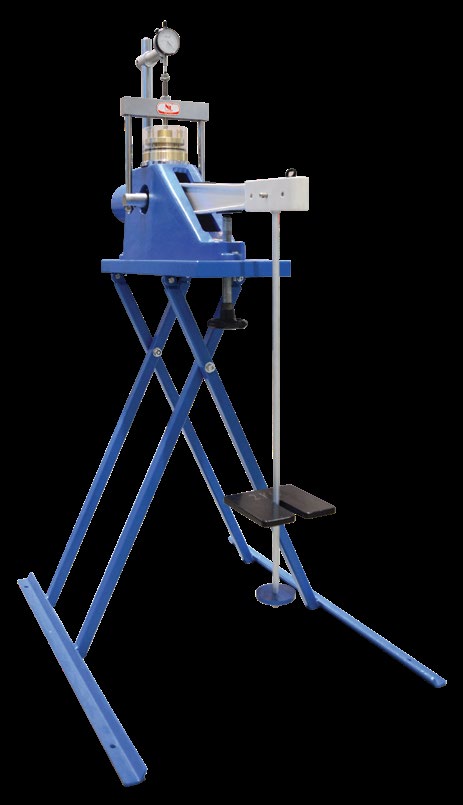

Consolidation Apparatus (also known as Oedometer) designed to provide reliable results from a unit which is compact without sacrificing accuracy and repeatability. It comes with triple beam ratio and compact design ensures space saving.
Model NL 5044 X / 001. Key figures: Load Capacity 8240 kPa on Ø50 mm Specimen; Weight 25kg (w/o bench) , 35kg (w/ bench).
Applications & Test Methods
Consolidation Apparatus is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. It supports test procedures to BS 1377-5, ASTM D2435. See the full soil laboratory equipment checklist. Browse all Soil testing equipment.
Supplied With
- Basic Consolidation Unit
- Ø 50 mm Consolidation Cell
- Weight Set Hanger
- Dial Indicator 12 x 0.002 mm
Optional Accessories
- Weight Set 50 kg
- Weight Set 100 kg
- Table Top Bench (for Consolidation Unit)
- Digital Displacement Gauge 12.7 x 0.001mm
- Data Acquisition Unit c/w Software
- Ø75 mm Consolidation Cell
- Compatible Laptop Unit
- Portable Desk (for Laptop)
- Data Aquisition Unit
Technical Specifications
| Model Number | NL 5044 X / 001 |
|---|---|
| Load Capacity | 8240 kPa on Ø50 mm Specimen |
| Weight | 25kg (w/o bench) , 35kg (w/ bench) |
Compliance Standards
- BS 1377-5
- ASTM D2435
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
