Description
Overview

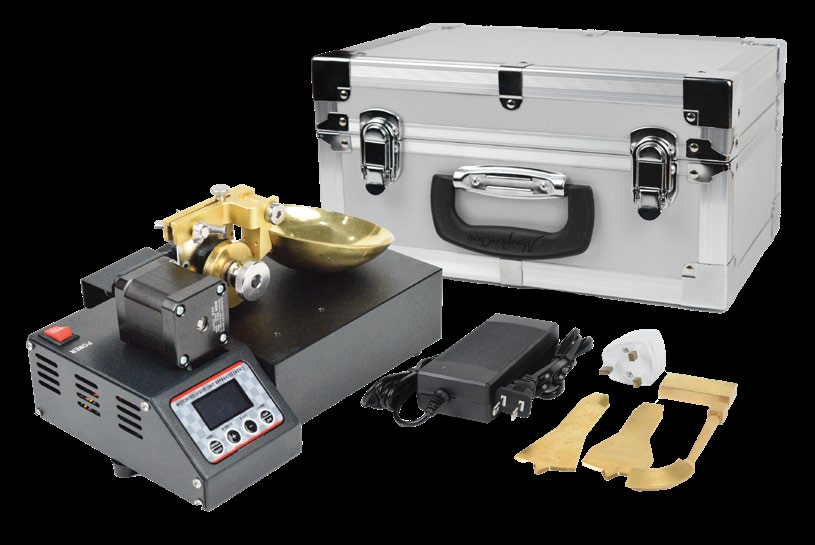

Motorized Liquid Limit Apparatus (Adv): particularly designed to determine the moisture content at which clay soil pass from plastic to liquid state. Operated at 120 blows per minute based on standard.
Model NL 5008 X / 003NM. Key figures: Dimension (mm) 230 (L) x 145 (W) x 130 (H); Approx. Weight 3.4 kg (with case 5.6kg); Power 240 V, 1 ph, 50 / 60 Hz, 6 A, 0.075 W.
Applications & Test Methods
Motorized Liquid Limit Apparatus (Adv) is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. It supports test procedures to BS 1377-2, ASTM D4318, AASHTO T89. Read the method guide: Atterberg Limits Test (ASTM D4318 / BS 1377-2). See the full soil laboratory equipment checklist. Browse all Soil testing equipment.
Technical Specifications
| Model Number | NL 5008 X / 003NM |
|---|---|
| Dimension (mm) | 230 (L) x 145 (W) x 130 (H) |
| Approx. Weight | 3.4 kg (with case 5.6kg) |
| Power | 240 V, 1 ph, 50 / 60 Hz, 6 A, 0.075 W |
Compliance Standards
- BS 1377-2
- ASTM D4318
- AASHTO T89
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
