Description
Overview

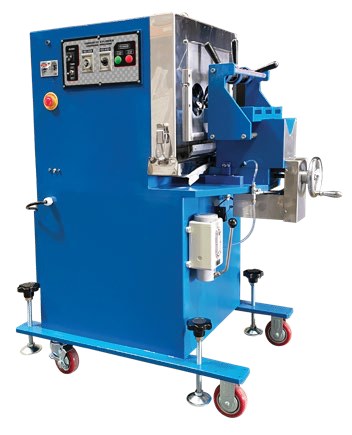

This polishing machine for concrete cylinder mold measures the compressive strength with uniform surface contacts without eccentricity by polishing the surface of concrete cylinder mold (100, 150 mm) etc, with diamond. This prevents the inconvenience of capping with compound or cement glue, etc.
Model NL 4034 X / 003. Key figures: Dimension(LxWxH) 600 x 850 x 1350mm; Weight 290kg; Power 380~415V, 750kW, 3Ph, 50/60 Hz.
Applications & Test Methods
Concrete Cylinder Grinding Machine is used for fresh and hardened concrete testing in site and ready-mix laboratories. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- 4” or 100mm Dia. Specimen Holder Base
- 4” or 100mm Dia. Specimen Guide Plate
- 6” or 150mm Dia. Specimen Guide Plate
- Tubing Set (Drain Tube x 2.5m),
Optional Accessories
- 8” Dia. Grinding Disc
Technical Specifications
| Model Number | NL 4034 X / 003 |
|---|---|
| Polishing Motor | 1800 r.p.m |
| Water Supply | Automatic Water Supply |
| Dimension(LxWxH) | 600 x 850 x 1350mm |
| Weight | 290kg |
| Power | 380~415V, 750kW, 3Ph, 50/60 Hz |
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
