Description
Overview

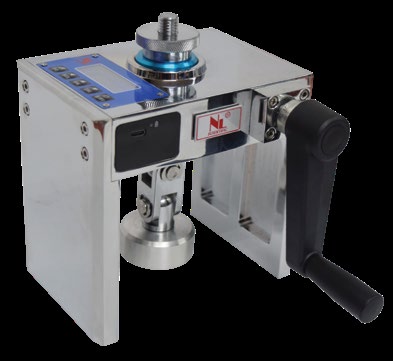

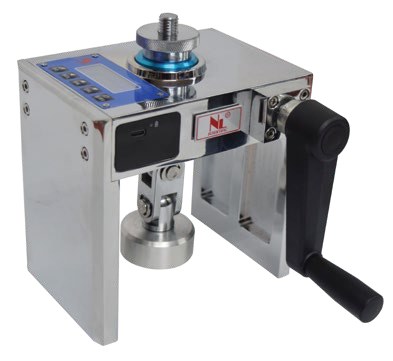

Used to determine the bonding strength of concrete overlay adhesion. Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal. It tests at any measuring point on the component, without requiring specimen preparation. However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding. Supplied complete with carry case. Accessories to
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 3020 X / 001 |
|---|---|
| Max. Load Capacity | 6 X 0.001 kN sensitivity NL 4016 X / 003 – A 001 Adhesion Test Aluminium Disc 20 mm |
| Accuracy & Repeatibility ≤1.0% F.S | dia. by 20 mm thick (n。 10 pieces) |
| Piston Travel | 10 mm |
| LED Display | 55 mm LED Screen |
| Power Source | DC 5V (Rechargeable) NL 4016 X / 003 – A 004 Adhesion Test Aluminium Disc, |
| Tester Weight | 2 kg square, 50 x 50 mm, 20 mm thick |
| Tester Dimension (LxWxH) 150 X 150 X 150 mm | (n。 10 pieces) Standard: EN 1348 |
Compliance Standards
- EN 1542
- EN 1348
- EN 1015-12
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
