Description
Overview

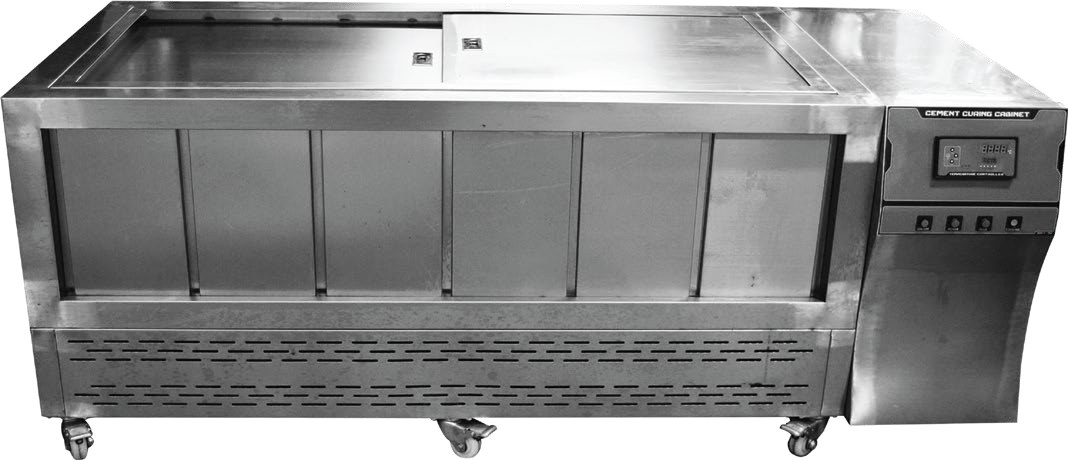

Both internal and external wall are fully stainless steel made, ideal for curing cement specimen in site laboratories, user friendly design and operation. Come with top opener cover and built in heating and cooling system.
Model NL 3005 X / 003. Key figures: Temperature Control 20 ±0.5°C; Temperature Resolution 0.1 °C; Refrigeration Power 0.14 kW Sustainable; Heating Power 0.4 kW.
Applications & Test Methods
Cement Curing Cabinet is used for cement, lime and mortar quality control in cement plants and construction laboratories. It supports test procedures to EN 196-1, ISO 679, ASTM C109 & C511. Read the method guides: Cement Compressive Strength Test (EN 196-1), Concrete Cube Test (BS EN 12390-2). Browse all Cement & Mortar testing equipment.
Supplied With
- Plastic Specimen Container (for 6 pcs
- 40 x 40 x 160 mm specimen)
Technical Specifications
| Model Number | NL 3005 X / 003 |
|---|---|
| Specimens Quantity | 40 Groups (240 pcs) |
| Temperature Control | 20 ±0.5°C |
| Temperature Resolution | 0.1 °C |
| Refrigeration Power | 0.14 kW Sustainable |
| Heating Power | 0.4 kW |
| Voltage | AC 220 – 240 V, 1 ph, 50/60 Hz |
| Dimension (LxWxH) | 2070 x 800 x 810 mm |
| Approx. Weight | 200 kg |
Compliance Standards
- EN 196-1
- ISO 679
- ASTM C109 & C511
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
