Description
Overview

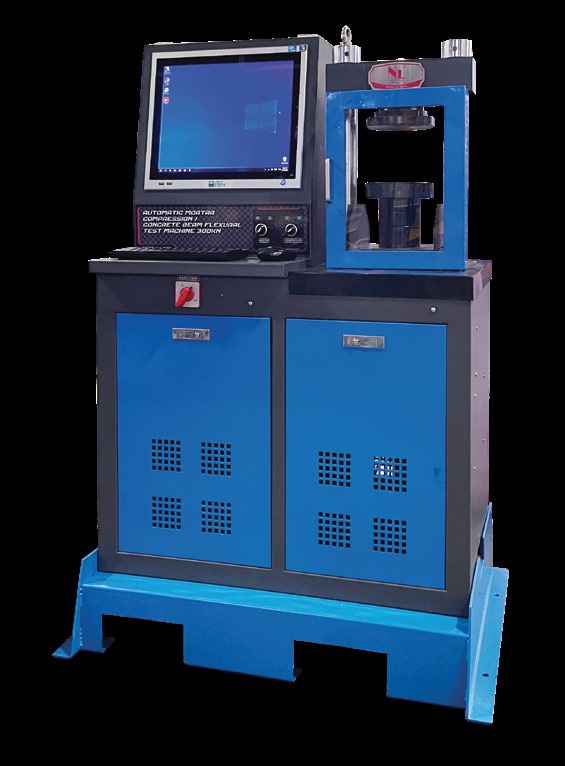

This automated Low Range machine come with dual range test method, it can perform mortar compression and concrete beam flexural test. Built-in industrial computer with touch screen functional and equipped with Testmaster Software V7.2. Supplied with compression jig and concrete beam flexural device.
Model NL 3027 X / 002. Key figures: Capacity 300 kN; Resolution 0.01 kN NL 3027 X / 002 – P006.
Applications & Test Methods
Automatic Mortar Compression / Concrete Beam Flexural Test Machine 300 kN is used for cement, lime and mortar quality control in cement plants and construction laboratories. It supports test procedures to EN 196-1, ASTM C 109, EN 12390-5, ASTM C78, C293. Read the method guides: Cement Compressive Strength Test (EN 196-1), Concrete Flexural Strength Test (EN 12390-5 / ASTM C78). Browse all Cement & Mortar testing equipment.
Supplied With
- Concrete Beam Flexural Device
- Compression Platen Set
- Distance Piece 40 mm
- Distance Piece 95 mm
Optional Accessories
- 50 mm (2”) Mortar Cube Compression Device
- Computer Printer
Technical Specifications
| Model Number | NL 3027 X / 002 |
|---|---|
| Capacity | 300 kN |
| Speed Control Range | 0.1 – 10 kN/S NL 3027 X / 002 – P005 Compression Platen Set 1no. |
| Resolution | 0.01 kN NL 3027 X / 002 – P006 |
| Platen Diameter | Ø160 mm Top & Bottom NL 3027 X / 002 – P007 Distance Piece 95 mm 1no. |
Compliance Standards
- EN 196-1
- ASTM C 109
- EN 12390-5
- ASTM C78
- C293
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
