Description
Overview
Triaxial test is a common method to determine the stress-strain characteristic and parameters of shear strength, mostly performed on undisturbed soil samples. The data is used for many soil engineering purposes such as ground, foundations, slope, excavations and embankments. The test is mostly performed on cylindrical soil samples of Ø 38 mm to 150 mm, with height being twice its diameter. It is subjected to stress along its vertical axis while applying fluid pressure in perpendicular directions & deformations are recorded until failure.
Model NL 5019 X. Key figures: Capacity 10 kN 50 kN; Testing Speed 0.00001 – 9.99999 mm/min; Max. Vertical Clearance 600 mm 700 mm; Platen Diameter 185 mm 185 mm.
Applications & Test Methods

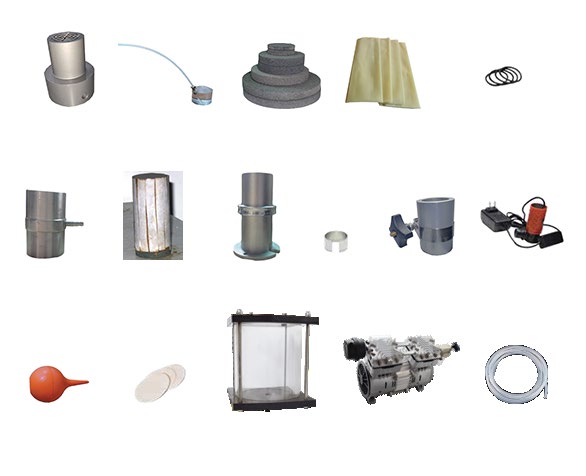

Advanced Triaxial Testing System is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. It supports test procedures to BS 1377:7, BS 1377:8, ASTM D4767, ASTM D2850. Read the method guide: Triaxial Test of Soil (UU, CU, CD). See the full soil laboratory equipment checklist. Browse all Soil testing equipment.
Technical Specifications
| Model Number | NL 5019 X |
|---|---|
| Capacity | 10 kN 50 kN |
| Testing Speed | 0.00001 – 9.99999 mm/min |
| Max. Vertical Clearance | 600 mm 700 mm |
| Horizontal Clearance | 215 mm 315 mm |
| Platen Diameter | 185 mm 185 mm |
| Max. Sample Size | Ø 70 mm Ø 150 mm |
| Power | 220 ~ 240V, 1Ph, 50/60 Hz |
| Product Dimension (mm) | 390(W) x 270(D) x 925(H) 600(W) x 440(D) x 1185(H) mm |
| Approx. Weight | 36 kg 80 kg |
Compliance Standards
- BS 1377:7
- BS 1377:8
- ASTM D4767
- ASTM D2850
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
