Description
Overview
The hardness tester is suitable for measuring small, thin specimens, surface infiltration, plating after the treatment of parts.
Model TT6004X006. Key figures: Measurement range 5HV~3000HV; Max. height of specimen 175mm; Power 220~240 V, 100 W, 0.2 A, 1 Ph, 50/60 Hz, 0.13 Hp; Dimension 320 (L) x 580 (W) x 650 (H) mm.
Applications & Test Methods

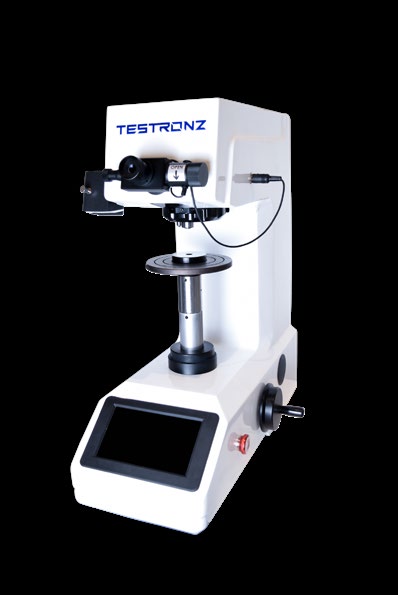

Vickers Hardness Tester (Touch Screen) is used for mechanical testing of steel, rebar, wire and metals in factory QC and civil laboratories. It supports test procedures to ISO 6507, ASTM E384. Read the method guide: Hardness Tester Guide. Browse all Steel testing equipment.
Supplied With
- Accessory Case
- Micrometer Eyepiece
- Small Flat Test Bench
- Large Flat Test Bench
- V-Shaped Test Bench
- Vickers Hardness Block
- Power Cable
- Horizontal Adjusting Screw
Technical Specifications
| Model Number | TT6004X006 |
|---|---|
| Test Force | kgf |
| Measurement range | 5HV~3000HV |
| Max. height of specimen | 175mm |
| Power | 220~240 V, 100 W, 0.2 A, 1 Ph, 50/60 Hz, 0.13 Hp |
| Dimension | 320 (L) x 580 (W) x 650 (H) mm |
| Weight | 55kg |
Compliance Standards
- ISO 6507
- ASTM E384
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
