Description
Overview
This test method is a variation of the simple slump test and subjects the concrete to vibration after removal from the slump cone. The time taken for the concrete to be recompacted is taken as a measure of workability. The small vibrating table operates at a fixed amplitude and frequency, and in the test a plastic disc is placed into contact with the upper surface of the concrete. The test is completed when the lower surface of the disc has been completely coated with cement grout.
Model NL 4005 X / 001. Key figures: Dimension (mm) 480 (L) x 410 (W) x 830 (H); Approx. Weight 62 kg; Power 240 V, 50 / 60 Hz, 1 ph Precision.
Applications & Test Methods

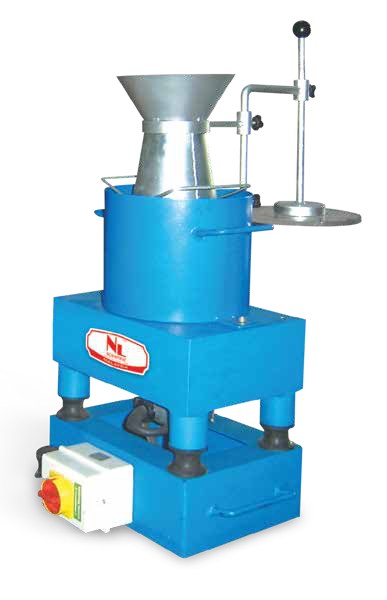

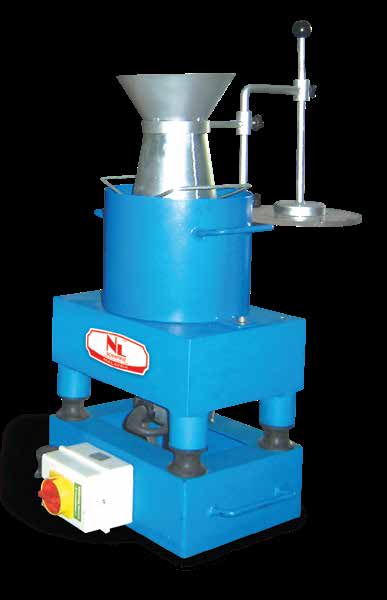

Vebe Consistometer Apparatus (BS) is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to BS 1881/104. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- Cylindrical Mould
- Vebe Slump Cone
- Swivel Arm with Funnel and
- Measuring Disc
- Tamping Rod
Technical Specifications
| Model Number | NL 4005 X / 001 |
|---|---|
| Dimension (mm) | 480 (L) x 410 (W) x 830 (H) |
| Approx. Weight | 62 kg |
| Power | 240 V, 50 / 60 Hz, 1 ph Precision |
Compliance Standards
- BS 1881/104
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
