Description
Overview

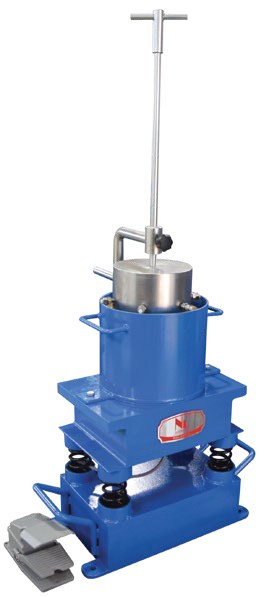

Vebe Consistometer is designed for use in determining the consistency and density of roller-compacted concrete. The test can be performed on both laboratory and field prepared freshly mixed concrete with a maximum aggregate aggregate size 22” (50mm) or less. In addition to roller compacted concrete,the device can be on cement treated, aggregates & soil cement type mixer. Meets ASTM C1170 Test Method for consistency and density determinations of roller-compacted concrete. Can be used on both laboratory and filed prepared mixes.
Model NL 4005 X / 002. Key figures: Approx. Weight 110 kg; Power 220 V, 50 / 60 Hz, 1 ph.
Applications & Test Methods
Vebe Consistometer Apparatus (ASTM) is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to ASTM C1170, ASTM C1176. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- Cylindrical Mould
- Swivel Arm c/w Sliding Weight (22.7kg/50 lbs)
- Foot Switch
- Stop Watch
- Tamping Rod
Optional Accessories
- Sliding Weight (12.5 kg/27.5 lbs)
- Sliding Weight (9.1 kg/20 lbs) (ASTM C1176)
Technical Specifications
| Model Number | NL 4005 X / 002 |
|---|---|
| Approx. Weight | 110 kg |
| Power | 220 V, 50 / 60 Hz, 1 ph |
Compliance Standards
- ASTM C1170
- ASTM C1176
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
