Description
Overview
Used to determine the consistency of concrete mixes having medium & high workability. Manufactured from sheet steel with chrome plated again corrosion. 100 mm Diameter top.
Model NL 4013 X / 003. Key figures: Dimension (mm) 380 (L) x 410 (W) x 640 (H); Approx. Weight 8 kg.
Applications & Test Methods

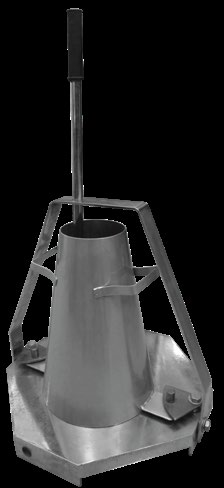

Portable Slump Cone Test Apparatus (Steel Plated Base with Measuring Bridge) is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to EN 12350-2, BS 1881:102, ASTM C143, AASHTO T119. Read the method guide: Concrete Slump Test (ASTM C143 / EN 12350-2). See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- ABS Plastic Cone
- ABS Plastic Cone Funnel
- Plastic Base Plate
- Galvanized Cone Funnel
- Steel Ruler 300 mm Length
- Graduated Tamping Rod
Technical Specifications
| Model Number | NL 4013 X / 003 |
|---|---|
| Dimension (mm) | 380 (L) x 410 (W) x 640 (H) |
| Approx. Weight | 8 kg |
Compliance Standards
- EN 12350-2
- BS 1881:102
- ASTM C143
- AASHTO T119
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
