Description
Overview

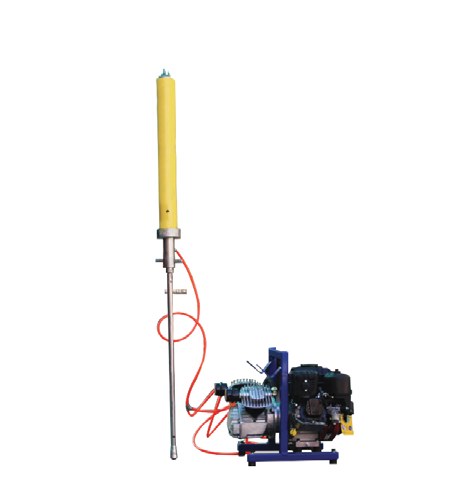

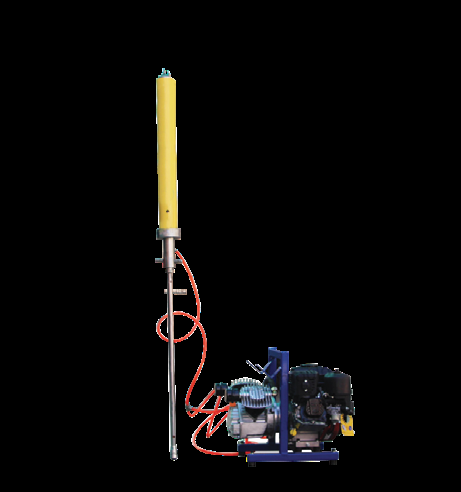

Pneumatic Dynamic Probing Light (DPL) testing and Dynamic Probing Medium (DPM) testing set is suitable for doing light weight, 10 kg and medium heavy weight 30kg dynamic. Used for the determination of the strength and deformation properties of the soils according to ISO 22476-2. The apparatus comprises a pneumatic power-pack with a four-stroke gasoline engine which drives through a flexible shaft with the lifting mechanism. It is a fully automated pressure release valve. Supply with a 10 kg weight and 20kg optional weight. This apparatus is comply ISO standard for medium weight test apparatus with 30kg mass and 20 cm drop height. It is a cost effective, simple and reliable tool suitable for light dynamic penetration testing up to approx. 10 – 12 m depth.
Model NL 5050 X / 001. Key figures: Drop Weight 10 kg + ( 20 kg Additional Weight – Optional ); Approx. Weight (kg) 105 kg.
Applications & Test Methods
Pneumatic Driven Dynamic Cone Penetrometer is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. It supports test procedures to ISO 22476-2. Read the method guides: Bitumen Penetration Test (ASTM D5), Atterberg Limits Test (ASTM D4318 / BS 1377-2). See the full soil laboratory equipment checklist. Browse all Soil testing equipment.
Optional Accessories
- 20 kg Weight Ring Type Weight Set
Technical Specifications
| Model Number | NL 5050 X / 001 |
|---|---|
| Drop Weight | 10 kg + ( 20 kg Additional Weight – Optional ) |
| Approx. Weight (kg) | 105 kg |
Compliance Standards
- ISO 22476-2
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
