Description
Overview

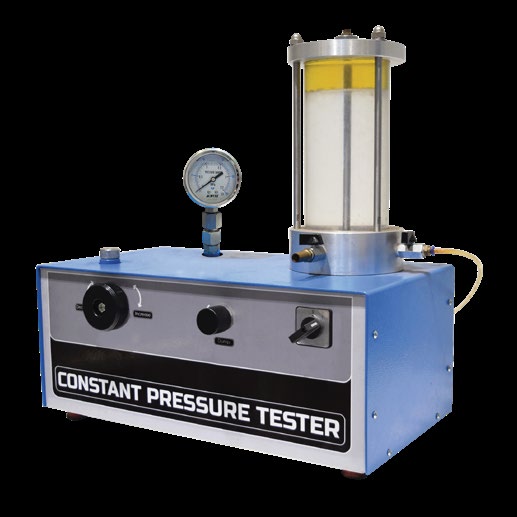

The oil/water constant pressure system is versatile and can be used in conjunction with a wide range of test equipment. The unit provides continuous variable pressure up to pressure test 1500 kPa. Pressure is increased or decreased simply by turning a control wheel. The apparatus is supplied without a gauge for suitable pressure monitoring equipment. The machine features a clear hydraulic/water interface reservoir and up to one litre capacity of water is available under pressure.
Model NL 5048 X / 001. Key figures: Max. Pressure 1500 kPa; Acrylic Tank Capacity 1.8 Litres; Product Dimension (mm) 360 (W) x 560 (L) x 600 (H); Appx. Weight 52 kg.
Applications & Test Methods
Oil/water Constant Pressure Tester is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. See the full soil laboratory equipment checklist. Browse all Soil testing equipment.
Technical Specifications
| Model Number | NL 5048 X / 001 |
|---|---|
| Max. Pressure | 1500 kPa |
| Acrylic Tank Capacity | 1.8 Litres |
| Product Dimension (mm) | 360 (W) x 560 (L) x 600 (H) |
| Appx. Weight | 52 kg |
| Power | 240V, 1ph, 375W, 0.5Hp, 1500 RPM |
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
