Description
Overview
Used to measure the length variation of cement specimens, the unit comprises a steel frame with an adjustable height beam, analogue dial gauge range 5 x 0.001 mm. Supplied “WITHOUT” reference rod and accessories which have to be ordered separately.
Model NL 3024 X / 002A. Key figures: Dimension 225 mm dia. x 450 mm Height.
Applications & Test Methods
Length Comparator Apparatus is used for cement, lime and mortar quality control in cement plants and construction laboratories. It supports test procedures to EN 12617-4, EN 1367-4. Browse all Cement & Mortar testing equipment.
Supplied With
- Rigid Steel Frame c/w Gauge End Cap

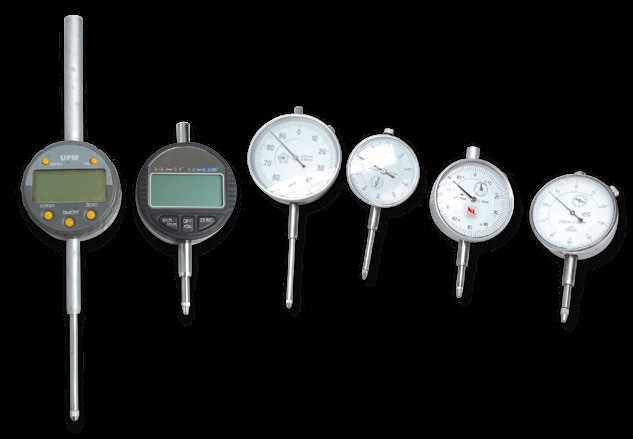

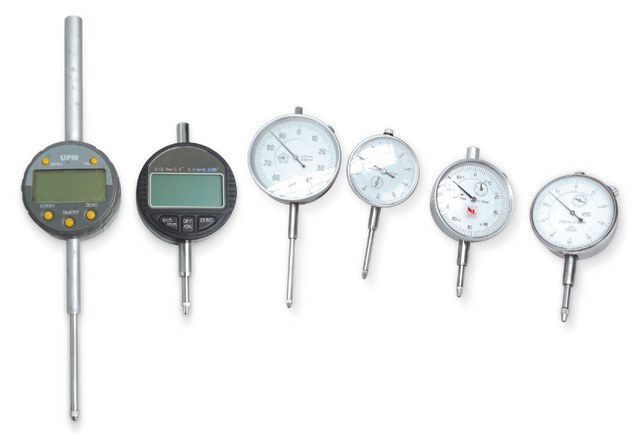

- Dial Indicator 5 x 0.001 mm
Optional Accessories
- Reference Rod 295 mm
- Reference Rod 170 mm
- Reference Rod 205 mm
- Reference Rod 280 mm
- Reference Rod 294 mm
- Reference Rod 160 mm
- Reference Rod 315 mm
- Reference Rod 420 mm
- Digital Indicator
- 12.7 mm x 0.001 mm
Technical Specifications
| Model Number | NL 3024 X / 002A |
|---|---|
| Dimension | 225 mm dia. x 450 mm Height |
Compliance Standards
- EN 12617-4
- EN 1367-4
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
