Description
Overview

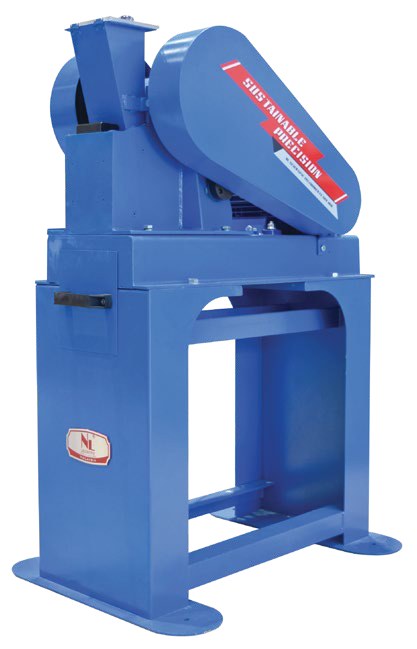

Jaw crusher are mainly used to break such kind of rocks and ores with medium hardness, they are important equipments in metallurgy, geolo- gy and building material and chemical industry for experiment and laboratory use.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 1009 X |
|---|---|
| Max Feeding Size | 45 mm 55 mm 125 mm |
| Output Grain Size | 2 ~ 10 mm 3 ~15 mm 6 ~ 30 mm |
| Jaw Opening Size | 60 x 100 mm 100 x 100 mm 125 x 150 mm |
| Approx. Weight | 125 kg 150 kg 235 kg |
| Rotation Speed | 1400 / 1750 r.p.m. 1420 / 1750 r.p.m 1400 / 1420 r.p.m |
| Power Supply | 220 – 240 V, 50 / 60 Hz, 380 – 415 V, 50/60 Hz, 3 ph, 380 – 415 V, 50/60 Hz, 3 ph |
Compliance Standards
- ASTM C289
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
