Description
Overview

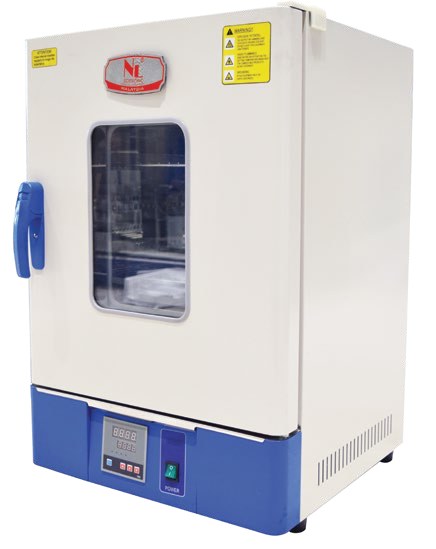

The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10。C to 250。C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtained with 50 mm thick fiber glass & steel shelves.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 1017 X / 007 |
|---|---|
| Capacity | 65 Litres |
| Voltage | 220 – 240 V, 1 ph, 50 / 60 Hz |
| Temp. Resolution | 0.1 °C |
| Ambient Temperature | +5-40 °C |
| Heating Power | 2.0 kW, 7 .5 A |
| Interior Dimension | 400 (L) x 360 (W) x 450 (H) mm |
| Exterior Dimension | 550 (L) x 550 (W) x 840 (H) mm |
| Packaging Dimension | 610 (L) x 610 (W) x 905 (H) mm |
| Load Per Shelve | 25 kg / shelve ( c/w 2nos shelves ) |
| Gross / Net Weight | 47 / 61 kg |
| Timing Range | 1-9999 min |
Compliance Standards
- ASTM C127/C136
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
