Description
Overview

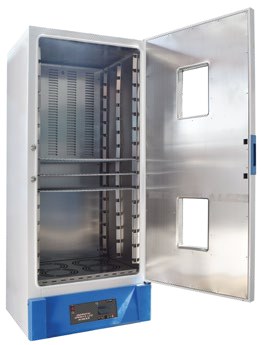

Digimatic Drying Oven 420 & 620 Litres: the Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10。C to 250.
Model NL 1017 SS / 004. Key figures: Ambient Temperature +5-40°C (Galvanized Steel); Power 220~240 V, 1 Ph, 4 kW, 220~240 V, 1 Ph, 6 kW,; Approx. Weight 115 kg 148 kg; Timer Range 999 Hours.
Applications & Test Methods
Digimatic Drying Oven 420 & 620 Litres is used for aggregate and rock testing for concrete, asphalt and road-base quality control. It supports test procedures to ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924. Browse all Aggregate & Rock testing equipment.
Technical Specifications
| Model Number | NL 1017 SS / 004 |
|---|---|
| Capacity | 420 Litres 620 Litres NL 1017 SS / 004 – P001 420 Litres Shelves |
| Ambient Temperature | +5-40°C (Galvanized Steel) |
| Load Per Shelve | 25/kg 3 For Standard Configuration |
| Power | 220~240 V, 1 Ph, 4 kW, 220~240 V, 1 Ph, 6 kW, |
| Approx. Weight | 115 kg 148 kg |
| Timer Range | 999 Hours |
Compliance Standards
- ASTM C127/C136/D558/D698/D1559
- EN 932-5/1097-5
- BS 1377/1924
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
