Description
Overview

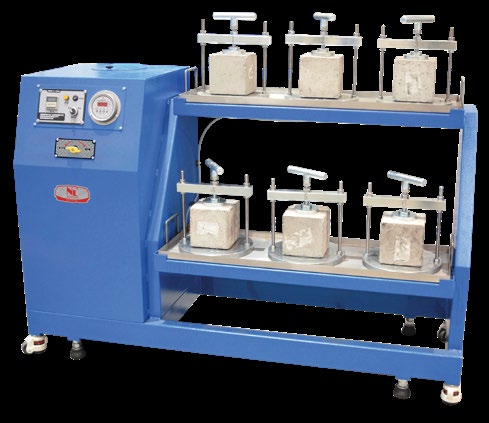

Used to determine the depth of water under pressure penetrates into concrete specimens. The unit accepts concrete cubic, cylindrical or prismatic specimens having dimension up to 200 x 200 x 200 mm. The specimen is placed between quick clamping chamber, and the special circular gaskets. The water under controlled pressure by fully automatic digital control panel with high precision pressure tranducer for fined and precision pressure control. The water penetrated is measured by splitting the specimen into half. The unit come with standard 6 pieces test chambers. Suppllied with built air pressure compression and water tank.
Model NL 4022 X / 002. Key figures: Pump Maximum Pressure 1 Mpa (10 bar); Dimension (LxWxH) 770 x 1050 x 1450 mm; Weight 150 kg; Power 220 V, 1 ph, 50/60 Hz, 500 W.
Applications & Test Methods
Digimatic Concrete Impermeability Apparatus is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to EN 12390-8, DIN 1048. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Supplied With
- Test Chamber c/w Gasket Seal
- Stainless Steel Chamber Guide Tray
- Tubing Roll (pre-installed)
- Plastic Aspirator Bottle 5L
Optional Accessories
- Gasket Seal
Technical Specifications
| Model Number | NL 4022 X / 002 |
|---|---|
| Maximum Size of Specimen | Cubic / Cylindrical / Prismatic specimens diameter / height not more than 200mm |
| Pump Maximum Pressure | 1 Mpa (10 bar) |
| Dimension (LxWxH) | 770 x 1050 x 1450 mm |
| Weight | 150 kg |
| Power | 220 V, 1 ph, 50/60 Hz, 500 W |
Compliance Standards
- EN 12390-8
- DIN 1048
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
