Description
Overview

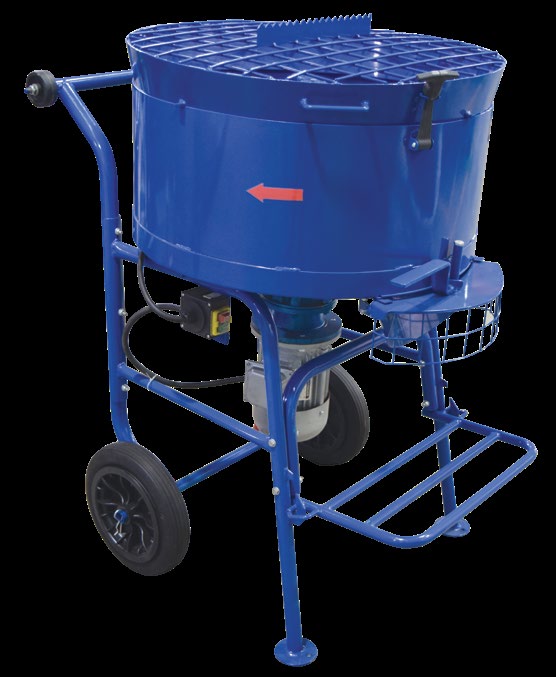

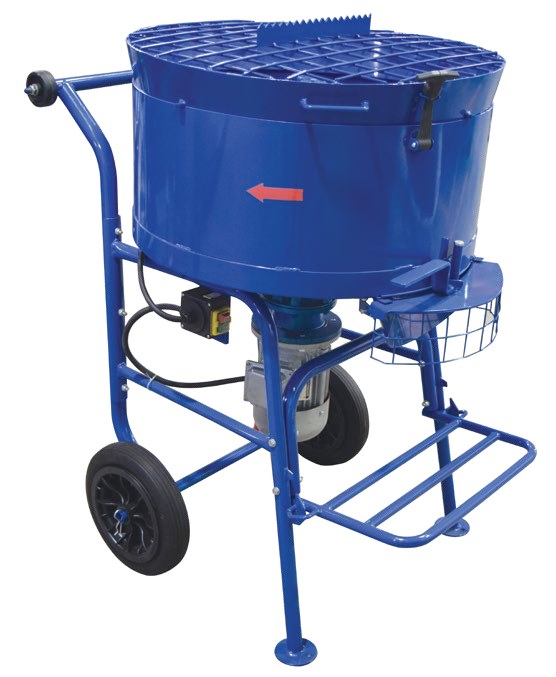

Used to prepare concrete specimens or mixtures, these pan type mixers ensure an uniform efficient fast mixture action. They are of easy & practical utilization; suitable for laboratory & field purposes. The mixers are equipped with a manually controlled discharge opening situated on the bottom part of the pan, for direct unloading of the mixture into a wheelbarrow or suitable container. The mixing blades & paddle can be adjusted in height; they are manufactured from special quality hardened steel to resist wear. The pan & the mixing gears have big thickness ratio, the gears are from hardened & rectified steel, the motor reducer is in oil-bath with Gleason conical coupling. Controls through magneto-thermic switch & release automatic coil contained in IP67 box.
Model NL 4025 X. Key figures: Mixture Capacity 40-53 Liters 60-80 Liters 100-200 Liters; Pan Capacity (Volume) 80 Liters 120 Liters 300 Liters; Pan Dimension Ø 577 x 316 (H) mm Ø 715 x 310 (H) mm Ø 1016 x 402 (H) mm; Rotation Speed 30 – 47 RPM 35 – 42 RPM 30 – 47 RPM.
Applications & Test Methods
Concrete Pan Type Mixer (Forced Speed) is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to EN 12390-2. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Technical Specifications
| Model Number | NL 4025 X |
|---|---|
| Mixture Capacity | 40-53 Liters 60-80 Liters 100-200 Liters |
| Pan Capacity (Volume) | 80 Liters 120 Liters 300 Liters |
| Pan Dimension | Ø 577 x 316 (H) mm Ø 715 x 310 (H) mm Ø 1016 x 402 (H) mm |
| Rotation Speed | 30 – 47 RPM 35 – 42 RPM 30 – 47 RPM |
| Overall Approx. Weight | 80 kg 128 kg 273 kg |
| Power | 380 – 415 V, 0.9 kW, 3 Ph, 50 / 60 Hz 380 – 415 V,2.2 kW, 3 Ph, 4.5 A, 50 / 60 Hz 380 – 415 V, 3 kW, 3 Ph, 50 / 60 Hz |
Compliance Standards
- EN 12390-2
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
