Description
Overview

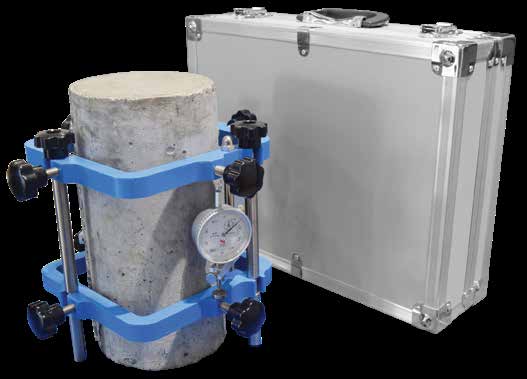

It is used to determine the strain and deformation characteristics of concrete and cylindrical specimens. It is comprises two lightweight metal castings for clamping to the specimens, two length gauge bars, a dial gauge 5 mm travel x 0.001 mm divisions. Compressometer for cylinder dia. 150 x 300, 160 x 320 mm. and 6” x 12”.
Model NL 4002 X / 003. Key figures: Dimension (mm) 330 (L) x 330 (W) x 260 (H); Packing Weight 5.5 kg; Approx. Weight 2.8 kg.
Applications & Test Methods
Compressometer Apparatus is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to ASTM C469, UNI 6556. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Technical Specifications
| Model Number | NL 4002 X / 003 |
|---|---|
| Dimension (mm) | 330 (L) x 330 (W) x 260 (H) |
| Packing Weight | 5.5 kg |
| Approx. Weight | 2.8 kg |
Compliance Standards
- ASTM C469
- UNI 6556
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
