Automatic CBR / Mod Soil Compactor

Description

Overview

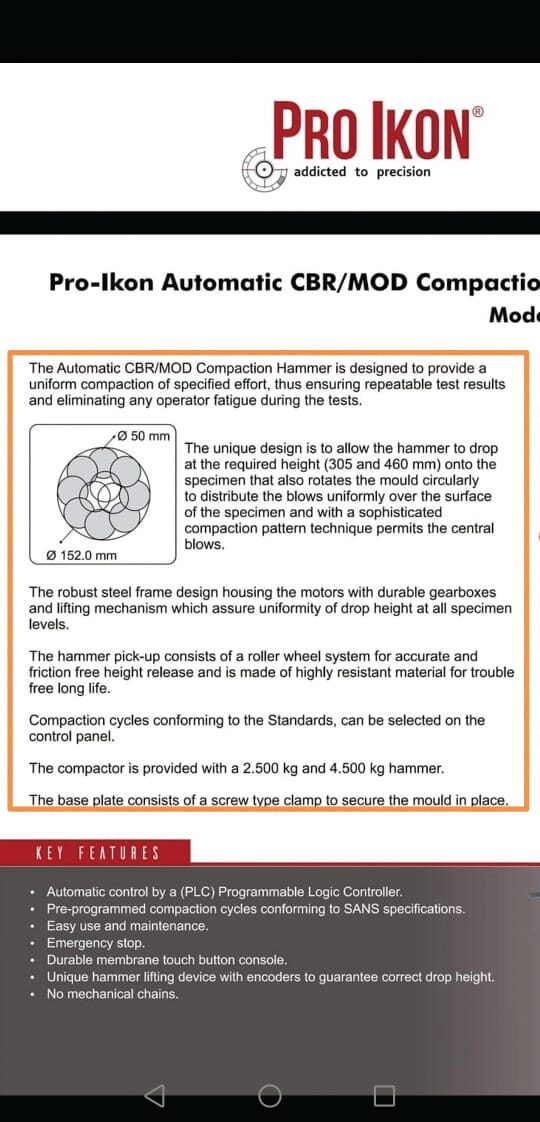

The Automatic CBR/MOD Compaction Hammer is designed to provide a uniform compaction of specified effort, thus ensuring repeatable test results and eliminating any operator fatigue during the tests. The unique design is to allow the hammer to drop at the required height (305 and 460 mm) onto the specimen that also rotates the mould circularly to distribute the blows uniformly over the surface of the specimen. The robust steel frame design housing the motors with durable gearboxes and lifting mechanism which assure uniformity of drop height at all specimen levels. The compactor is provided with a 2.500 kg and 4.500 kg hammer.

Model NL 5025 X / SAS. Key figures: Approx. Packing Weight 180 kg Precision; Power 220 ~ 240 V, 250 W, 8 A, 1 Ph, 50/60 Hz.

Applications & Test Methods

Automatic CBR / Mod Soil Compactor is used for geotechnical and soil mechanics testing for earthworks, foundations and pavements. It supports test procedures to SANS 3001-GR31 : 2010. Read the method guides: CBR Test (ASTM D1883 / BS 1377-4), Proctor Compaction Test (ASTM D698 / D1557). See the full soil laboratory equipment checklist. Browse all Soil testing equipment.

Supplied With

• Digimatic Control Unit
• Ø50mm Lifting Rammer c/w
• Counter Weight

Optional Accessories

• Soundproof Security Cabinet

Technical Specifications

Compliance Standards

• SANS 3001-GR31 : 2010

Why NL Scientific

• Manufactured in Malaysia to European standards, exported to 40+ countries
• Ready stock in a large warehouse for prompt delivery
• ISO/IEC 17025 accredited calibration laboratory
• Over 3,000 products for civil engineering and material testing
