Description
Overview

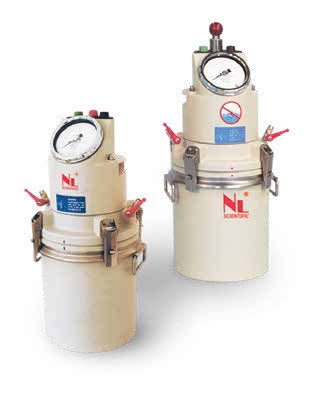

Used to determining the air content in fresh concrete. An aluminium vassel connected to the measuring gauge showing directly the air content in percentage. Come with two types operation, manually & electrical operated.
Model NL 4023 X / 002. Key figures: Air Content Range 0-10% div. 0.1%, up to & 0.5% over; Dimension Ø 250 (D) x 450 (H) mm; Approx. Weight 12 kg 14 kg; Power – 230 V, 1 ph, 50 / 60 Hz.
Applications & Test Methods
Air Entrainment Meter (8 Litres) is used for fresh and hardened concrete testing in site and ready-mix laboratories. It supports test procedures to EN 12350-7, ASTM C231, DIN 1048, AASHTO T152. See the full concrete laboratory equipment checklist. Browse all Concrete testing equipment.
Technical Specifications
| Model Number | NL 4023 X / 002 |
|---|---|
| Air Content Range | 0-10% div. 0.1%, up to & 0.5% over |
| Dimension | Ø 250 (D) x 450 (H) mm |
| Approx. Weight | 12 kg 14 kg |
| Power | – 230 V, 1 ph, 50 / 60 Hz |
Compliance Standards
- EN 12350-7
- ASTM C231
- DIN 1048
- AASHTO T152
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
