Description
Overview

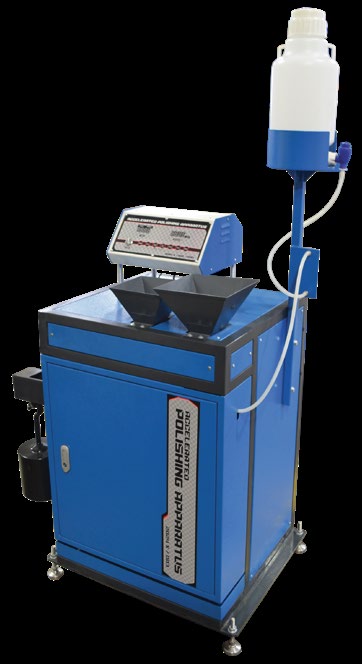

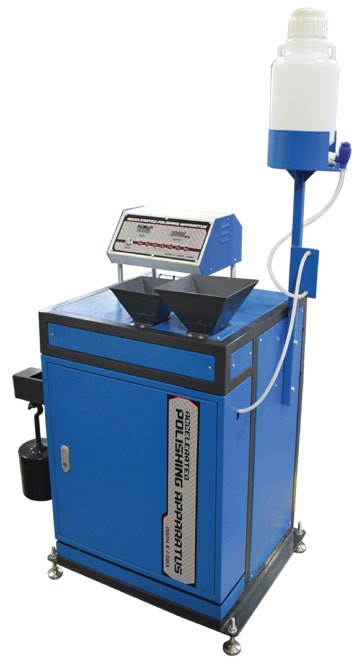

The apparatus is used for determining resistance of aggregates used for road wear caused by polishing action of vehicle tyres on a real surface. It used to prepare aggregate samples for testing resistance by using Skid Resistance Apparatus. Maximum of 14 specimens to be mounted on a road wheel and specimens are brought into contact with a rubber tyred wheel and by increasing loads during operation.
Model NL 2024 X / 003. Key figures: Dimension 1000 (L) x 570 (W) x 1750 (H) mm; Approx. Weight 141 kg; Power 220~240 V, 1.4 kW, 6 A, 1 Ph, 50 / 60 Hz Precision.
Applications & Test Methods
Accelerated Polishing Apparatus is used for bitumen binder and asphalt mix design testing for road construction. It supports test procedures to BS 812:114, EN 1097-8. Browse all Bitumen & Asphalt testing equipment.
Supplied With
- Corn Emery Ungraded – 6 kg
- Flour Emery Ungraded – 6 kg
- Control Stone Ungraded – 25 kg
- Friction Criggion Stone Ungraded – 25 kg
- Specimen Mould
- Mould Plate
- Solid Rubber Wheel
- Water Reservoir Tank (5L)
- Flow Meter
Technical Specifications
| Model Number | NL 2024 X / 003 |
|---|---|
| Dimension | 1000 (L) x 570 (W) x 1750 (H) mm |
| Approx. Weight | 141 kg |
| Power | 220~240 V, 1.4 kW, 6 A, 1 Ph, 50 / 60 Hz Precision |
Compliance Standards
- BS 812:114
- EN 1097-8
Why NL Scientific
- Manufactured in Malaysia to European standards, exported to 40+ countries
- Ready stock in a large warehouse for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 products for civil engineering and material testing
