Description
Overview

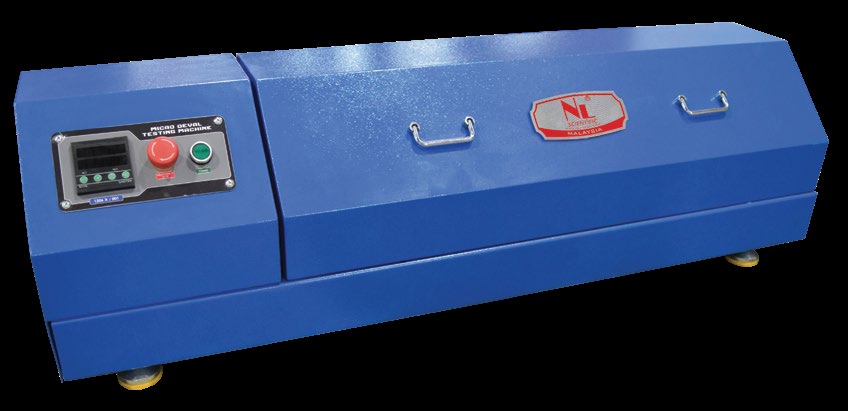

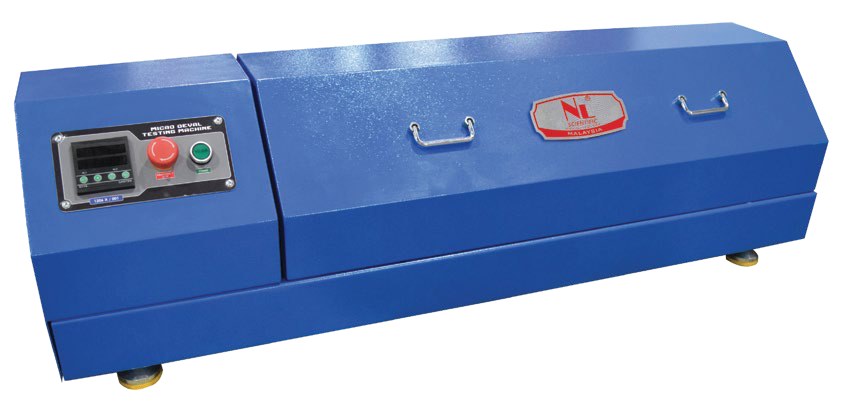

Used to determine the resistance of aggregates to wear by abrasion. The Micro-Deval is supplied complete with separate control panel fitted with a digital automatic revolutions counter. It consists of a motor driven actuator which transmits the rotation directly to the drum cylinders. Complete with conforming soundproof safety cover. The machne essentially comprises as heavy steel frame of 4 cylinders Ø 200 x 154mm (L).
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 1026 X / 001 |
|---|---|
| Speed Rotation | 100 ± 5 min for 14000 ± 10 |
| Power | 220 – 240V, 50/60 Hz, 1kW |
Compliance Standards
- EN 1097-1 / EN 13450
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
