Description
Overview

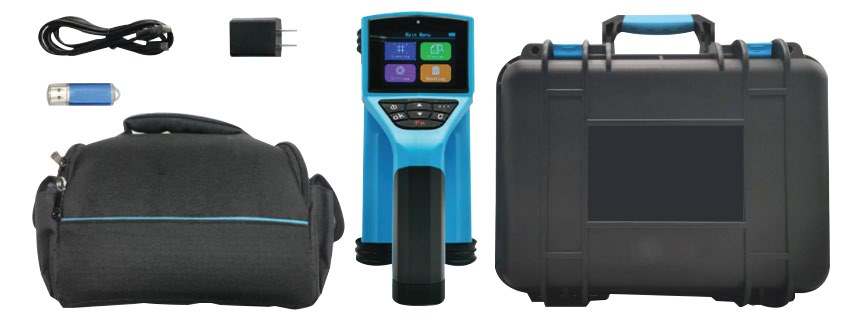

The Rebar Scanner is a portable intelligent non-destructive testing instrument. It is used in the structural inspection of reinforced concrete. Ability to carry out accurate testing on measuring depth of rebar cover and diameter of rebar on the surface of reinforced concrete and ability to analyse distribution of the rebar. The ergonomics design, make it easy to use for long hours. The host is equipped with touchable full colour LCD Screen , 854 x 480 with clear interface.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 4041 X / 004 |
|---|---|
| Applicable Range | Ø6mm ~ Ø50mm |
| Protective Layer Thickness Range | First Stage : 2 – 100 mm, |
| Display Accuracy on Dia. Estimate | 0.1 mm |
| Power | Built in Charge ble Lithium Battery |
| Dimension and Weight | 235mm (L) x 120mm(W) x 130mm (H) / 1kg |
Compliance Standards
- BS 1881-204
