Description
Overview

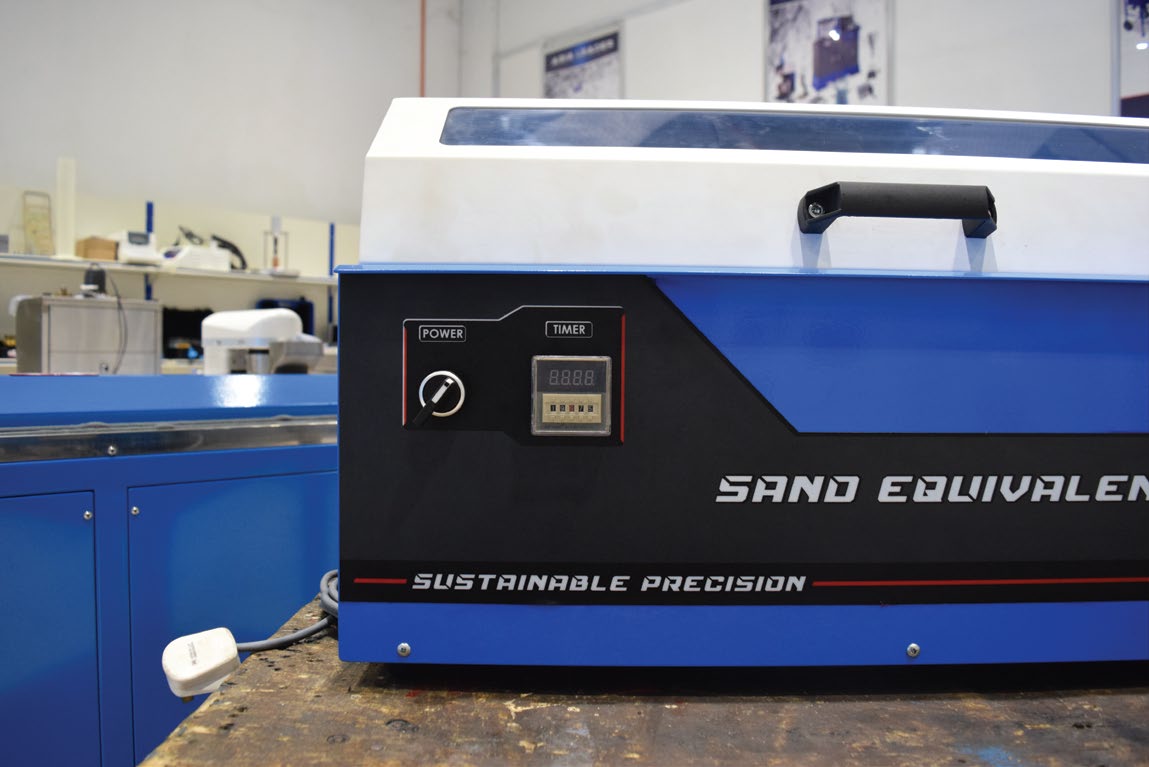

The digimatic sand equivalent shaker features consist of digimatic timer (can be set at required time) to increase accuracy and ease of operation compared to a spring-type timer. The unit provides adjustable oscillation speed to confirm with both ASTM & EN test procedure,also eliminating variations from on operator to the next. The unit provides a consistent and repeatable oscillation, eliminating variations from one operator to the next.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 1001 X / 004 |
|---|---|
| Dimension | 770 (L) x 350 (W) x 435 (H) mm |
| Approx. Weight | 44 kg Single Cylinder |
| Packing Weight | 55 kg |
| Power | 220-240V, 50 / 60 Hz, 0.8 A, 1 ph,128 W |
Compliance Standards
- EN 933-8
- ASTM D2419
- AASHTO T176
- NF XP18-598
Why NL Scientific
- European standard quality at competitive Asian pricing
- Large warehouse capacity with ready stock for prompt delivery
- ISO/IEC 17025 accredited calibration laboratory
- Over 3,000 product portfolio for civil engineering testing
Test method guide: Sand Equivalent Test (ASTM D2419 / AASHTO T176): Method & Apparatus
