Description
Overview

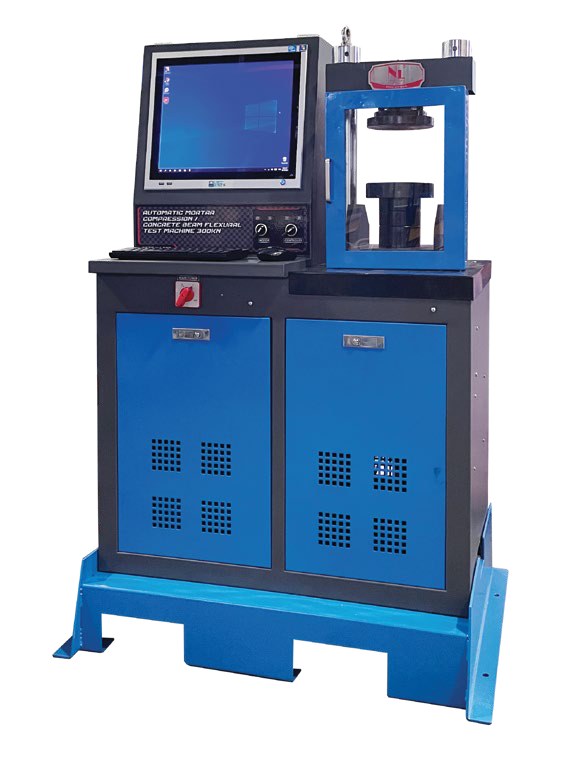

This automated Low Range machine come with dual range test method, it can perfrom mortar compression and concrete beam flexural test. Built-in industrial computer with touch screen functional and equipped with Testmaster Software V7.2. Supplied with compression jig and concrete beam flexural device.
Manufactured by NL Scientific — Asia’s leading manufacturer of civil engineering and material testing equipment, supplying laboratories, universities and road authorities worldwide. European-standard build quality with ISO/IEC 17025 accredited calibration support and ready-stock availability.
Technical Specifications
| Model Number | NL 3027 X / 002 |
|---|---|
| Capacity | 300 kN |
| Speed Control Range | 0.1 – 10 kN/S NL 3027 X / 002 – P005 Compression Platen Set 1no. |
| Resolution | 0.01 kN NL 3027 X / 002 – P006 |
| Platen Diameter | Ø160 mm Top & Bottom NL 3027 X / 002 – P007 Distance Piece 95 mm 1no. |
Compliance Standards
- EN 196-1
- ASTM C 109
- EN 12390-5
- ASTM C78
- C293
